Snapmaker 2.0: 3-in-1 Printer (A150)

The most funded technology project in Kickstarter history is now available to buy from MakerTree 3D! Featuring 3 great tools in 1 machine and a smart modular design, the Snapmaker 2.0 range features 3D printing, laser engraving, laser cutting and CNC carving, in a form factor to suit your project or workspace.


After creating a huge amount of excitement on Kickstarter with their Snapmaker 3-in-1, Snapmaker has done it again with the Snapmaker 2.0, becoming one of the most funded tech projects in Kickstarter history. Snapmaker has taken onboard feedback from users of the extremely popular original Snapmaker 3-in-1 machine and have expanded and improved on the original design while keeping their unique easy-assembly modular system. Bigger, faster and smarter, the Snapmaker 2.0 now boasts new essential features such as power-loss resume, build plate auto-levelling, camera-assisted laser engraving positioning and an ER11 CNC collet (compatible with over 100 carving and cutting bits). The Snapmaker 2.0 gives very impressive results in three essential manufacturing methods, which makes it a great educational tool, as well as a versatile addition for prototyping workshops and designers. With many add-ons and upgrades already available and with more being developed, the Snapmaker 2.0 is a great opportunity for you to unleash the full potential of your creativity.



PHOTO LABEL HERE

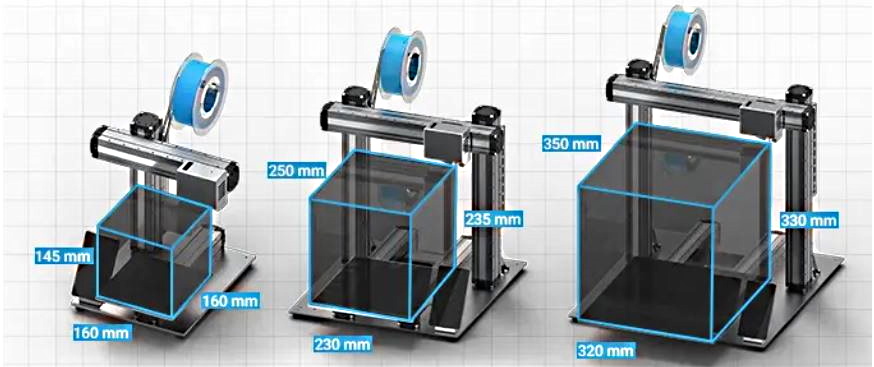

A Size To Suit Your Requirements

From the compact A150, to the large A350, the Snapmaker 2.0 is available in three different sizes to suit your workspace or project.


PHOTO LABEL HERE

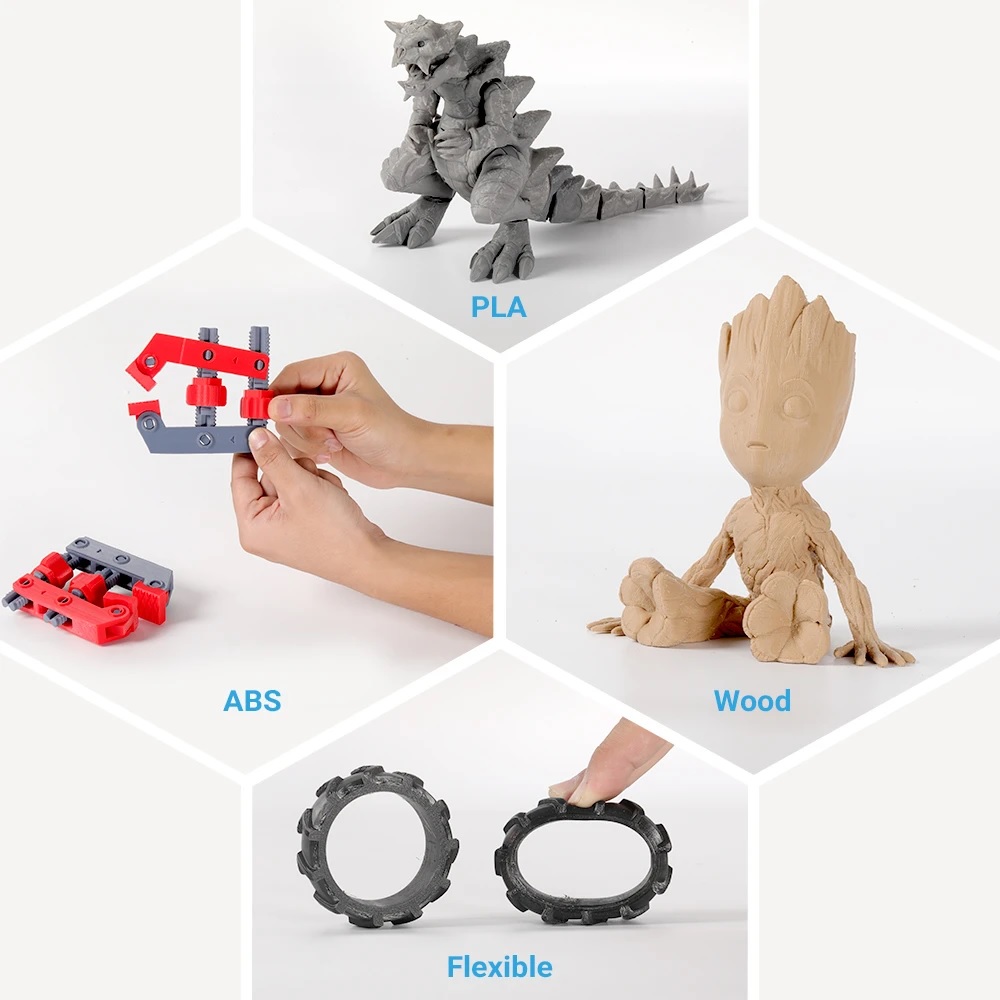

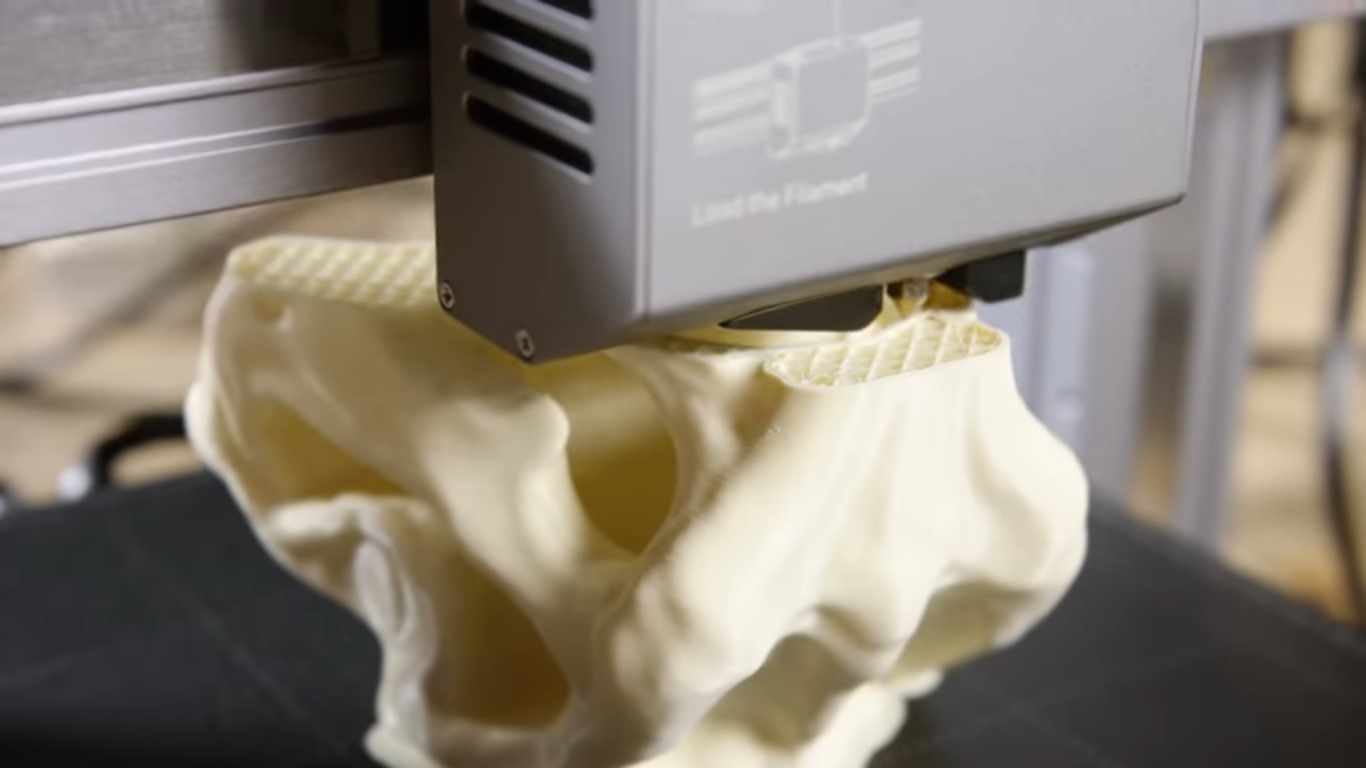

3D Printing

3D print your designs with a wide variety of colours and materials including PLA, ABS and Flexible filaments. The Snapmaker 2.0 also features essential functions such as filament run-out detection and automatic build platform levelling for a reliable 3D printing experience. In addition, a flexible magnetic print sheet makes removing finished prints a breeze and changing to CNC or Laser Engraving a simple process.

PHOTO LABEL HERE

PHOTO LABEL HERE

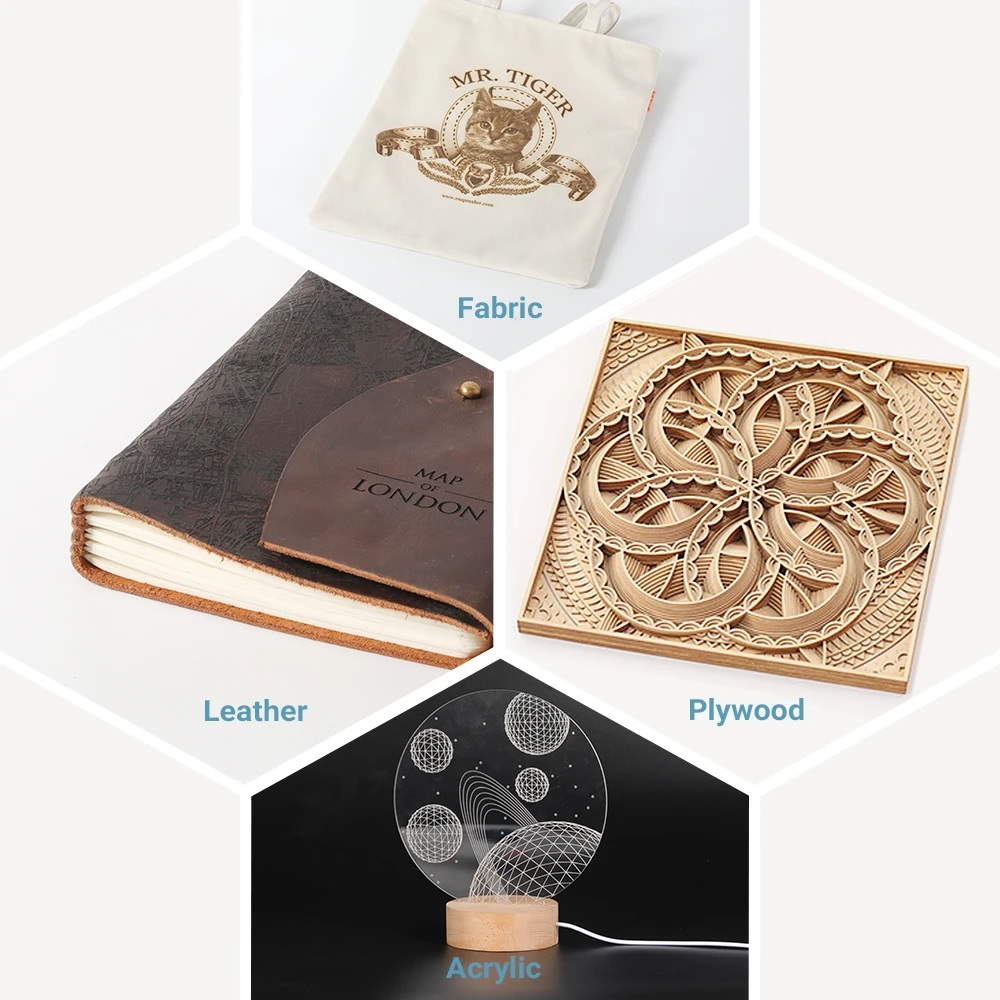

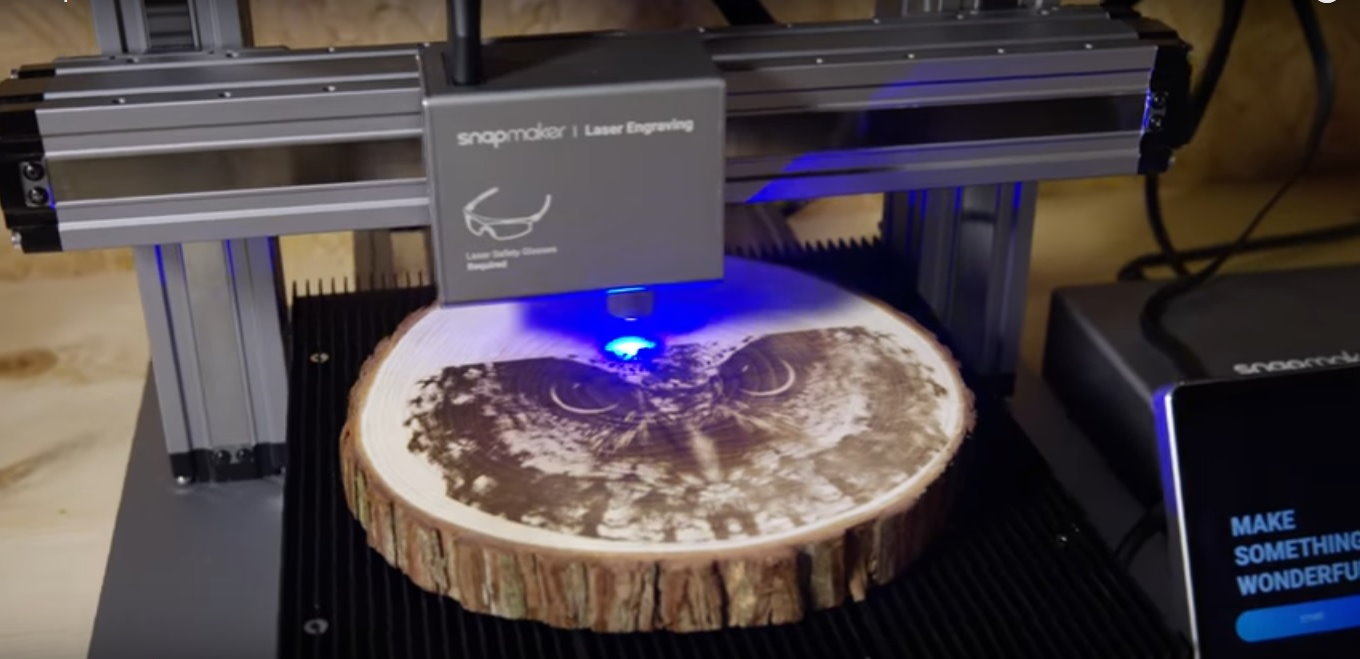

Laser Engraving

A powerful 1.6W laser can engrave or cut your designs using materials such as leather, plywood and acrylic. A built in camera assists with positioning the material by providing an overlayed preview in the software for precise placement. The laser engraving function also features a fast engraving mode in greyscale for speeding up large projects.

PHOTO LABEL HERE

PHOTO LABEL HERE

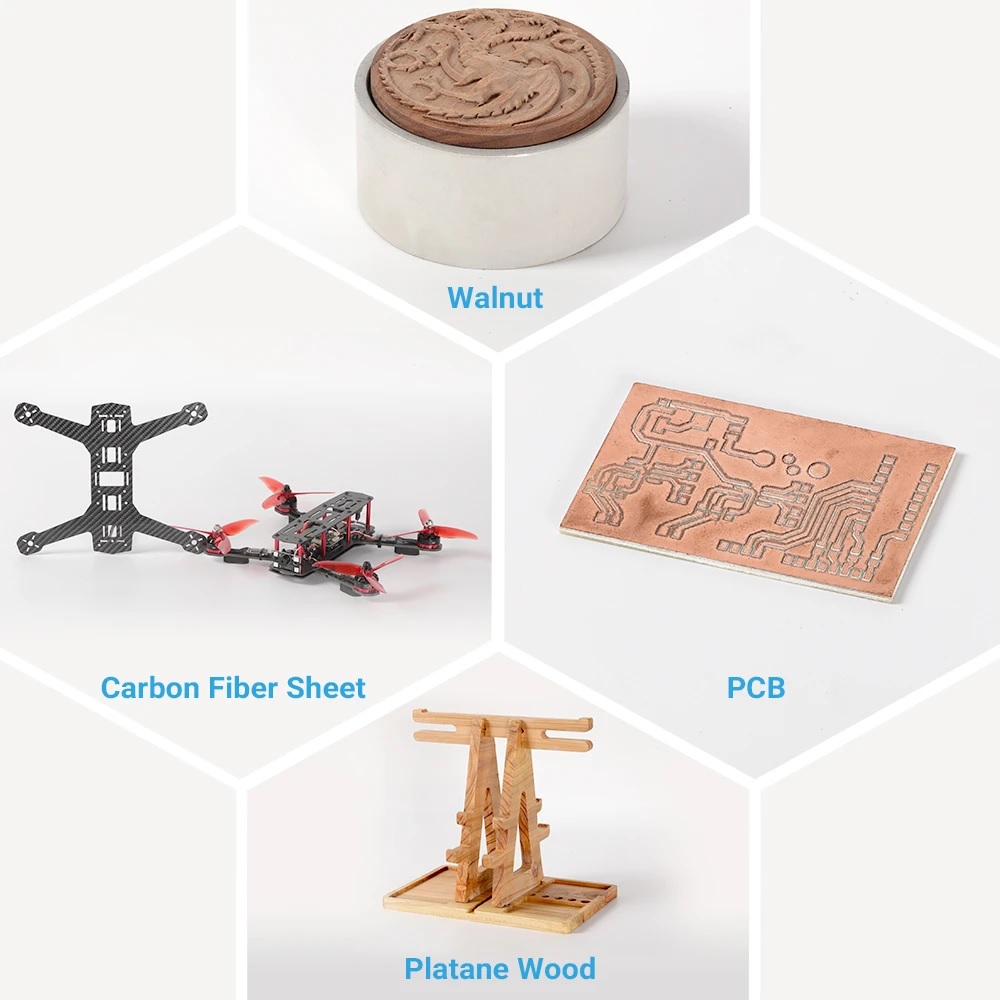

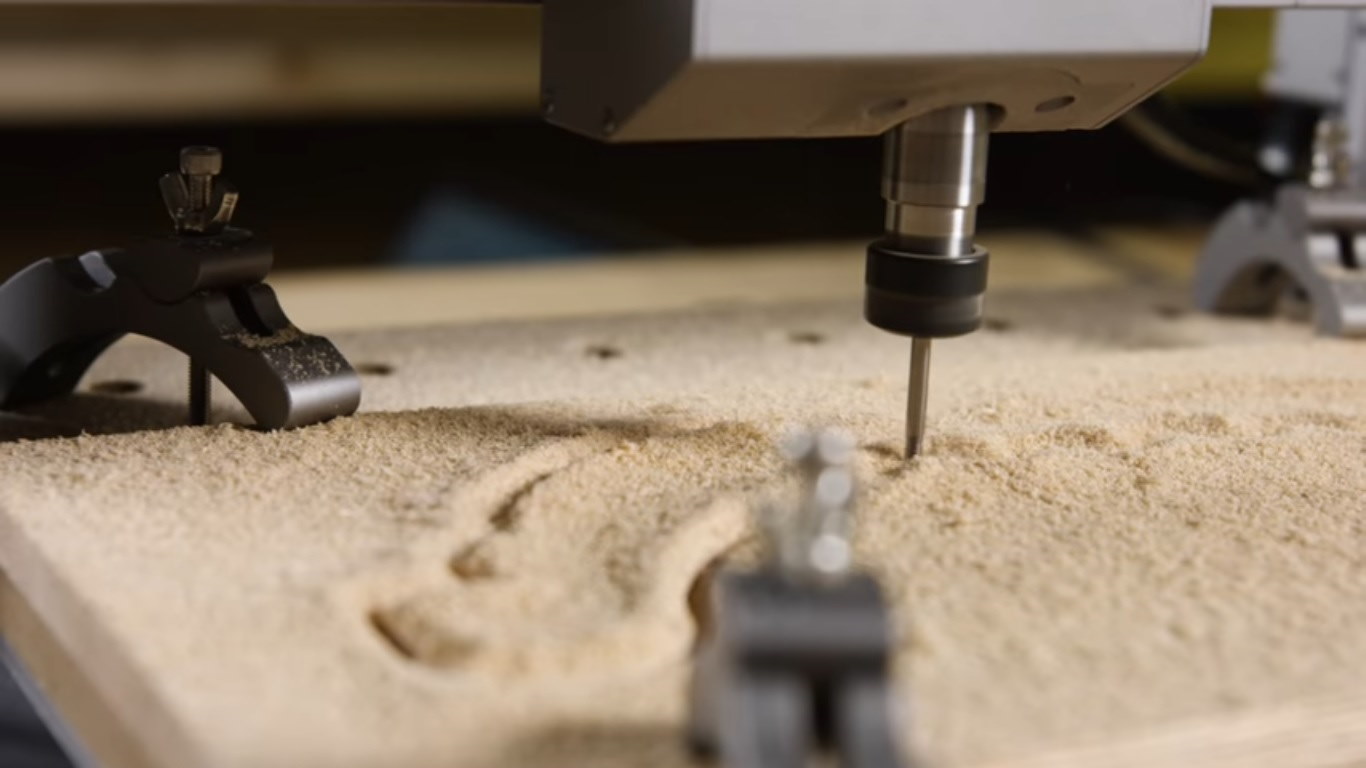

CNC Carving

Cut and carve hard materials such as Acrylic, POM, Hardwood, carbon fiber sheets and more with the CNC Carving module. Featuring a standard ER-11 Collet, the carving module is compatible with over one hundred carving and cutting bits ranging in diameter from 0.5mm (0.020 inches) to 6.35mm (0.250 inches). Also included is a removable and replaceable MDF waste board and clamp kit to keep the work piece level and in place.

PHOTO LABEL HERE


PHOTO LABEL HERE

PHOTO LABEL HERE

PHOTO LABEL HERE

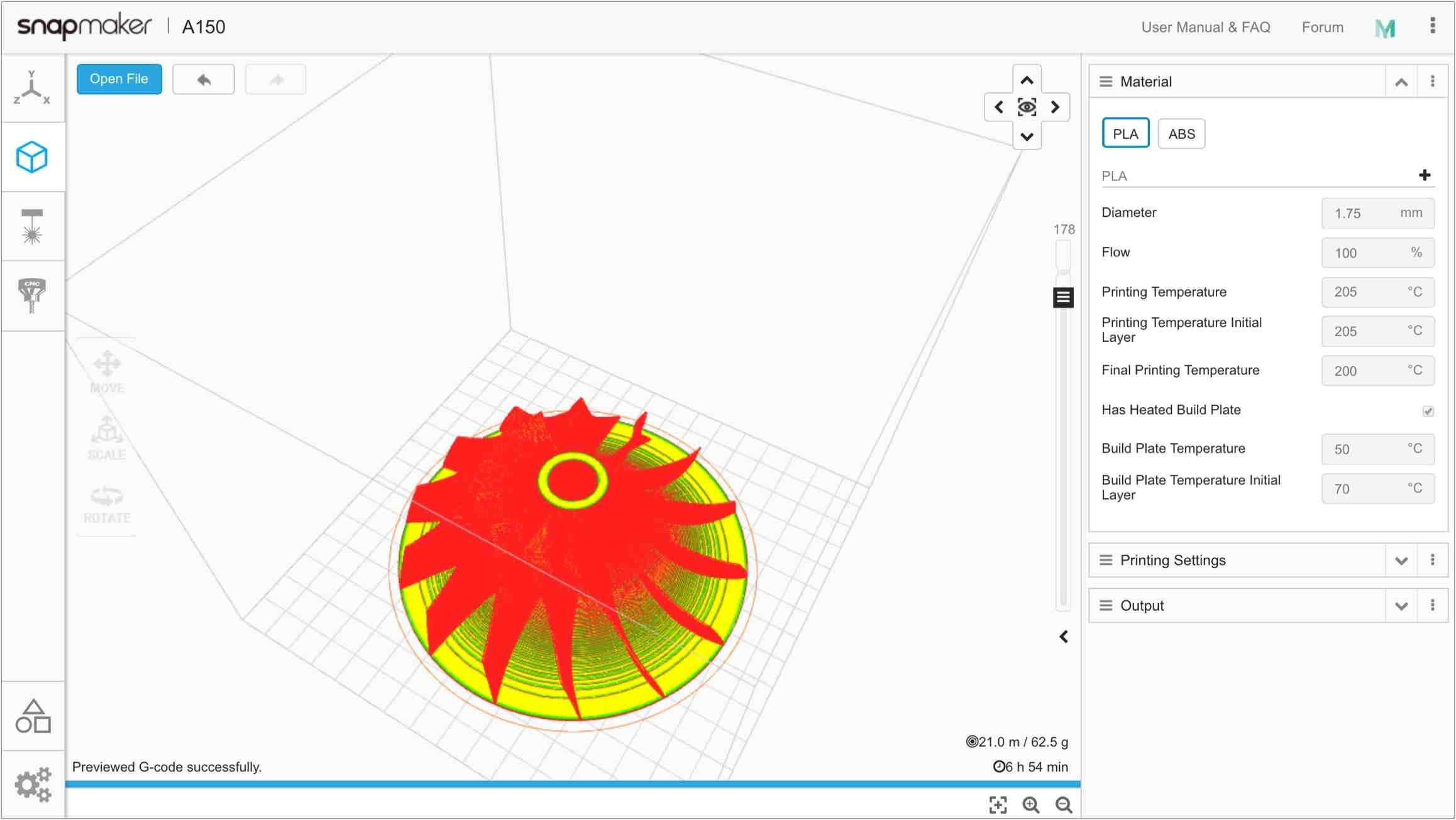

Snapmaker Luban Software

Developed specifically for the Snapmaker range of machines, Luban is a free, open-source software designed to handle all three functions of the 3-in-1 Snapmaker series. Powerful, but also easy to use, the Luban software boasts features such as multiple model support, WiFi connectivity, camera capture for laser engraving positioning and multiple engraving modes.


PHOTO LABEL HERE

PHOTO LABEL HERE

PHOTO LABEL HERE

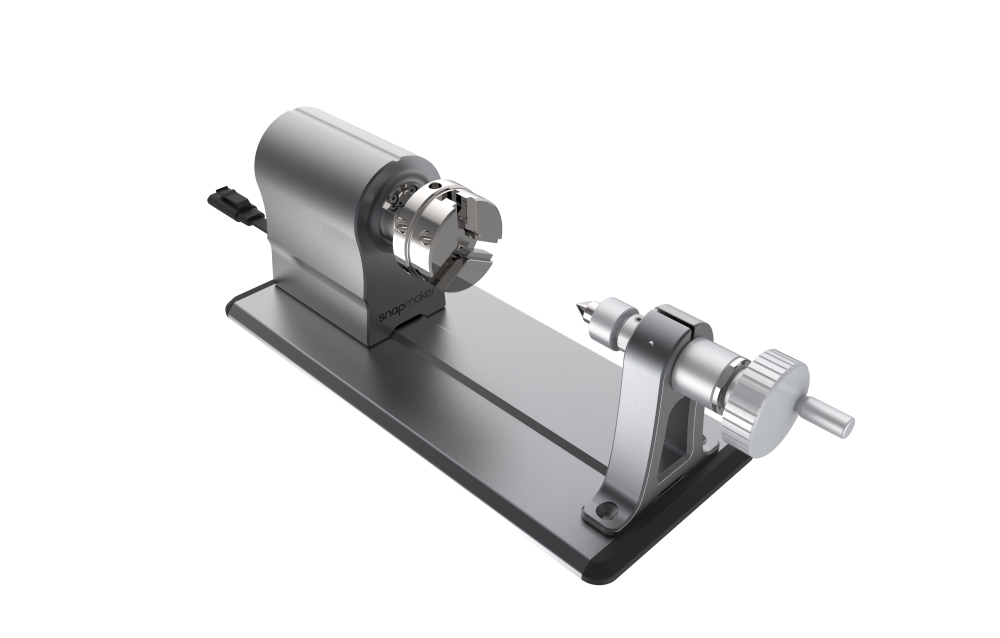

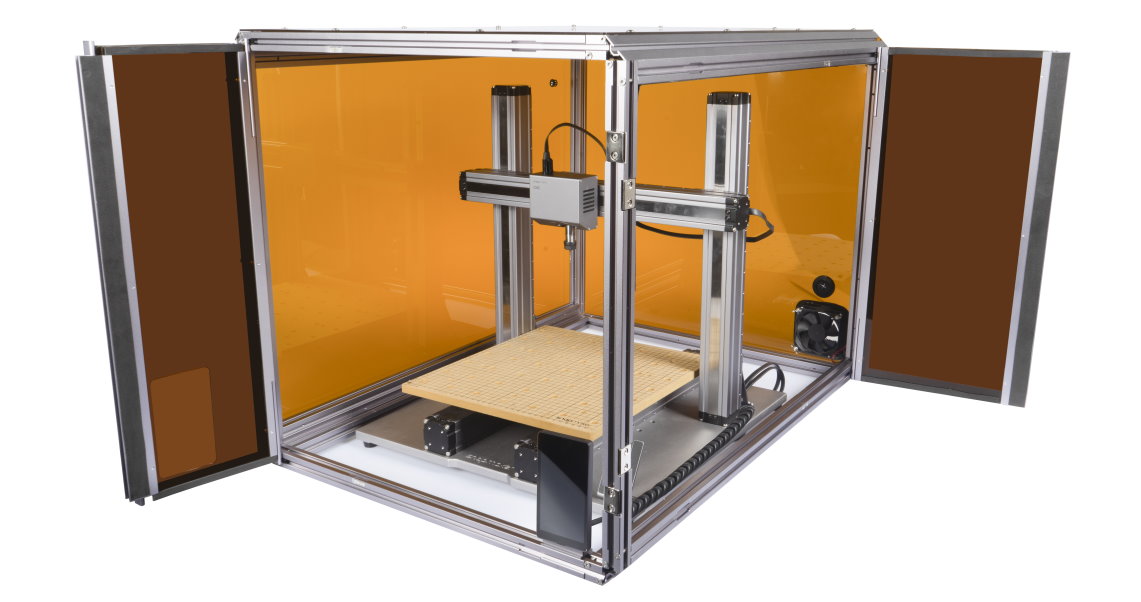

Expand And Upgrade

The future-proof modular design of the Snapmaker 2.0 allows and encourages almost unlimited potential for upgrades and add-ons to expand its features and capabilities.



Specifications

Printing Technology: FDM
Platform Levelling: Auto-levelling
Layer Thickness: 50 - 300 microns (0.05mm - 0.3mm)
Nozzle Diameter: 0.4mm
Filament Diameter: 1.75mm
Printing Temperature: Up to 275°C
Heated Platform:
         A150:Up to 110°C;
         A250:Up to 100°C;
         A350:Up to 80°C;
Build Volume
         A150:160x160x145mm;
         A250:230x250x235mm;
         A350:320x350x330mm;
Laser: 1600mW
Laser Wavelength: 450nm
Laser Work Area:
A150:160x160mm;
A250:230x250mm;
A350:320x350mm;
Shank Diameter: 0.5mm-6.35mm (0.02-0.25 inches)
Spindle Speed: 6000-12,000 RPM
CNC Work Area:
A150:160x160x90mm;
A250:230x250x180mm;
A350:320x350x275mm;

Weight:
A150: 16kg;
A250: 23.5kg;
A350: 27.5kg;

Special Features:
5” TFT, Android System, Filament Run-out Detection, Power Loss Recovery

Compatible Materials:
FDM: PLA, ABS, TPU, PETG;
Laser: Wood, leather, plastic, fabric, paper, non-transparent acrylic;
CNC: Hardwood, PCB, acrylic, POM, carbon fiber sheet;
File Formats:
FDM: STL, OBJ;
Laser: SVG, JPEG, PNG, JPG, BMP and DXF;
CNC: .CNC/.NC;
Connectivity: Wi-Fi, USB Cable, USB Disk
Printer Software: Snapmaker Luban
Software Compatibility: MacOS, Windows, Linux

Shipping Dimensions:
A150:550x460x320mm;
A250:550x530x320mm;
A350:630x550x320mm;
